Legacy Lift LLTP9KSCX 9,000 lbs. Two Post Clear Floor & Floor Plate - Symmetric Lift - Two Post Legacy Lift Freedom Shop Equipment

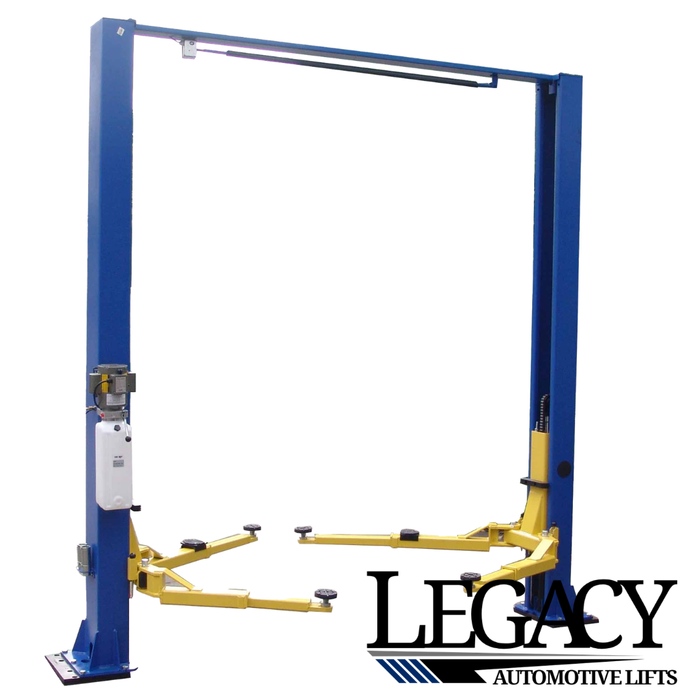

Legacy Automotive Lifts LL9KSCF-X 9,000 lbs. Two Post Clear Floor & Floor Plate - Symmetric

The LL9KSCF-X from Legacy Automotive Lifts delivers professional-grade lifting capability with 9,000 lbs. capacity in a compact footprint. This asymmetric two-post design features single-piece column construction for enhanced stability, internal hose routing for a cleaner appearance, and a padded overhead shut-off bar with kill switch for operator safety. Drop-in adjustable swivel pads with height adapters accommodate various vehicle types, while rubber door guards protect your workspace. The clear floor design maximizes usable space in your shop, making this lift an exceptional value for serious automotive professionals seeking reliability and efficiency.

Two Post Clear Floor

  • 9,000 lbs. capacity
  • Symmetric Arms
  • Rubber Door Guards
  • Chain Drive Cylinders
  • Dual Point Lock Release
  • Auto Arm Restraint System
  • Single Piece Column
  • Internal Hose routing
  • Low profile Spin Up Lift Pads
  • Stackable Adapters Included

Legacy Automotive Lifts LL9KSCF-X 9,000 lbs. Two Post Clear Floor & Floor Plate - Symmetric

by Legacy Automotive Lifts
$2,700.00 USD - $2,700.00 USD
$2,700.00 USD
$2,700.00 USD - $2,700.00 USD
$2,700.00 USD
Promos
Features & Benefits

Standard Features:

  • High Quality Construction
  • Chain Drive
  • Dual Point Lock Release
  • Saddle Pad Adapters included (1 pair)
  • Powder coat finish

New TP9K "X" Features:

  • Single Piece Column construction (TP9KACX - TP9KSCX)
  • Padded 'Shut Off' Bar x. Kill Switch (TP9KACX - TP9KSCX)
  • Low Profile 'drop-in' Swivel Pads w/ 1-1/2" adjustable height
  • 4 ea. Stackable 1-3/8" & 4" 'drop in' Height Adapters
  • Reduced overall width w/ front-side power unit mounting
  • Internal hose routing w/ integrated hose guards
  • Rubber door guards
Specifications

 Model Number LL9KSCF-X
Lifting Capacity 9,000 lbs.
Height Overall
 142.9"
Width Overall w/ Power Unit 138"
Max Lifting Height 72"
Width Between Columns 113.6"
Min Pad Height 4"
Drive-Thru Clearance 104"
Lifting Speed 50s
Asymmetric / Symmetric Symmetric
Clear Floor / Floor Plate Clear Floor
Front Arm Reach - Min. / Max. 31" - 45"
Rear Arm Reach - Min. / Max. 31" - 45"
Max Load Per Arm 2,250 lbs.
Cable Diameter 3/8"
Column Size 7.25" x 10.87"
Column Steel Thickness 5mm
Carriage Steel Thickness 5mm
Arm Steel Thickness 6mm
Power 220v-20Amp,1Ph
Ship Weight 1,370 lbs.
