Tuxedo 12,000 lbs. 2-Post Symmetric Floor Plate Lift TP12KFX Lift - Two Post Tuxedo Freedom Shop Equipment

TP12KFX Elevador de placa de piso de dos postes de 12,000 lb

por Tuxedo
SKU TP12KFX
$7,095.00 USD - $7,095.00 USD
$7,095.00 USD
$7,095.00 USD - $7,095.00 USD
$7,095.00 USD
Elevador de placa de piso de dos postes de 12,000 lb
Promos
Features & Benefits

Standard Features:
•High Quality Lifts
•Chain Drive
•Dual Point Lock Release
•Powder-coat finish


New!! TP12KFX & TP15KCX ‘X’ Features:

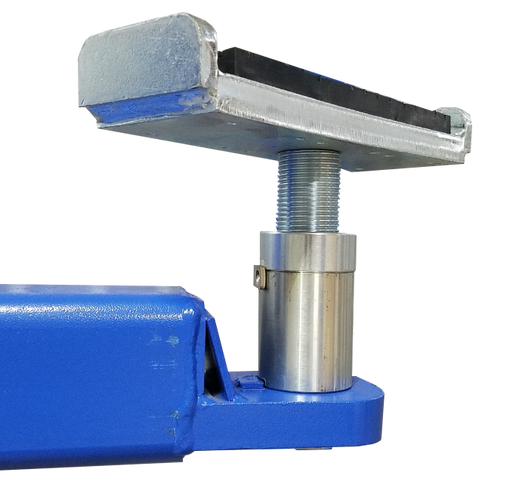

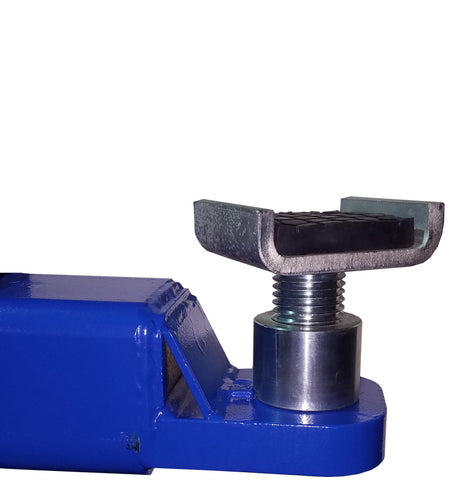

•Low Profile ‘Drop-in’ Swivel Pads w/ 2” adjustable height
•Padded ‘Shut Off’ Bar w/ Kill Switch
•4ea Stackable 3” & 5”‘ drop-in ’Height Adapters
•Reduced overall Width w/ front-side mounted Power Unit
•Internal Hose Routing w/ integrated Hose Guards
•Rubber Door Guards

Specifications

 Model Number TP12KFK
Lifting Capacity 12,000 lbs.
Height Overall
 121.5"
Width Overall w/ Power Unit 147.8"
Max Lifting Height 76.5"
Width Between Columns 120.3"
Min Pad Height 5"
Drive-Thru Clearance 109"
Lifting Speed 50s
Asymmetric / Symmetric Symmetric
Clear Floor / Floor Plate  Floor Plate
Short Arm Reach - Min. / Max. 37" - 52"
Long Arm Reach - Min. / Max. Same
Max Load Per Arm 3,000 lbs.
Cable Size 7.75" x 14.5"
Column Steel Thickness 7mm
Carriage Steel Thickness 8.5mm
Arm Steel Thickness 8mm
Power 220v-20amp,1Ph
Ship Weight 2,450 lbs.

Brochures

Download TP12KFK Brochure

Download TP12KFK Manual

Warranty

Limited One-Year Warranty:
Tuxedo Distributors, LLC offers a limited one-year warranty to the original purchaser of Tuxedo Lifts and Wheel Service in the United States and Canada. Tuxedo Distributors, LLC will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.

Structural Warranty:
The following parts and structural components carry a five year warranty:

  • Columns
  • Top Rails
  • Beams
  • Uprights
  • Arms
  • Swivel
  • Pins
  • Legs
  • Carriages
  • Tracks
  • Cross Rails
  • Overhead Beams
